MVK Fusion CIP Safety
Efficient engineering thanks to MVK Fusion CIP Safety

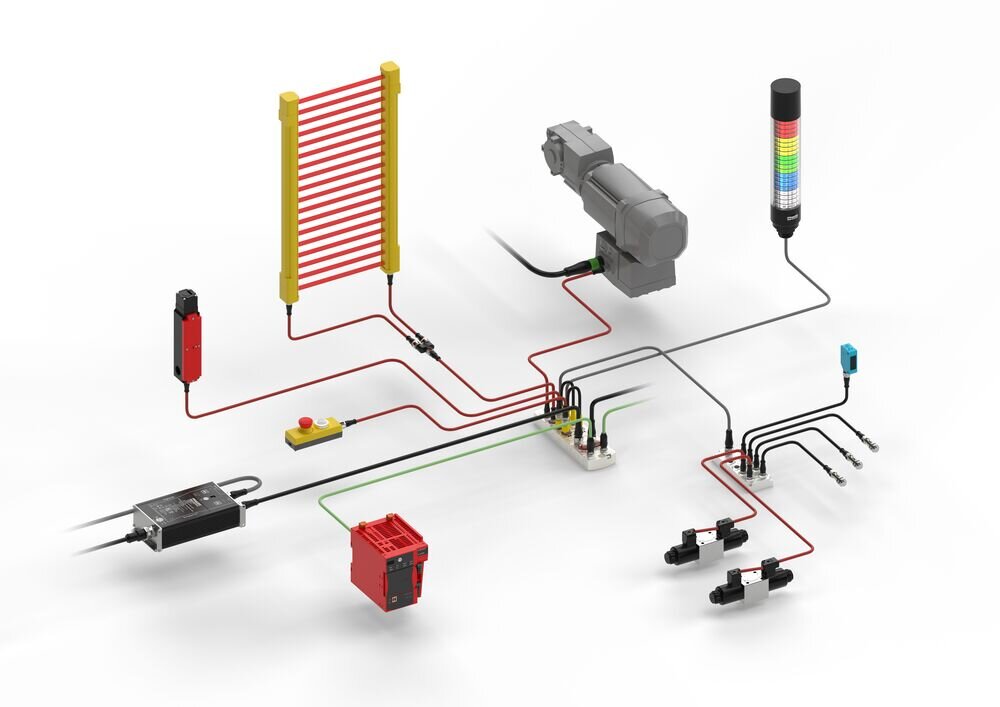

MVK Fusion CIP Safety combines three central functions of installation technology: digital standard sensors and actuators, digital safety-related sensors and actuators and IO-Link. This reduces the number of fieldbus modules required per modular unit, in the best case to just one. Installation is simpler and faster.
Various adapters are available for simplifying the connection of devices with safety and standard signals.
Configurable sourcing-bipolar safety outputs can be used for Safe Torque Off.
Configurable single or redundant safety inputs can be used for dry contacts or OSSD devices.
Operating many devices such as e-stop with reset button or interlocks requires a combination of safety and standard signals.
IO-Link Class A port for illumination or IO expansion.
IO-Link Class B port with safety output for achieving up to PLd on valve manifolds and other output devices.
Safety configuration with just a few mouse clicks
MVK Fusion CIP Safety greatly simplifies the configuration of safety-related sensors and actuators. Configuration is easily done in the controller manufacturer’s engineering tool.
There is no need for a special manufacturer’s tool to transfer the SNN (Safety Network Number) to a new device. This saves time and reduces stress by eliminating the possibility of incorrect entries.
Technical Data
- Robust, fully encapsulated metal housing
- Shock and vibration resistant
- IP67 RATED
- Temperature range from -30 °C to +60 °C
- CIP Safety
- Certifications: CE, UKCA, UL, TÜV
- Art.-No. 55514
More information
Connection options
